Weekend Project

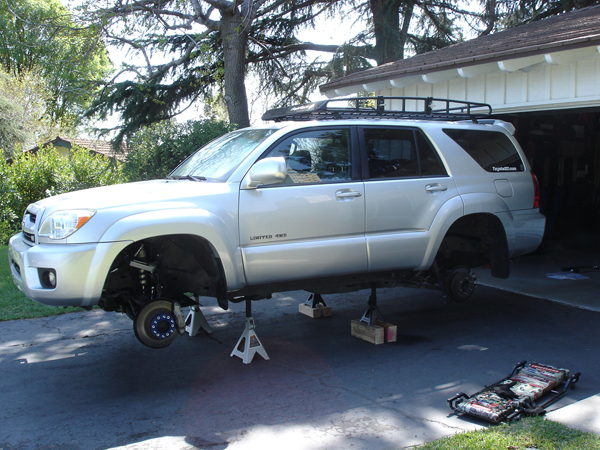

The amazing flying 4Runner.

Sway Bars

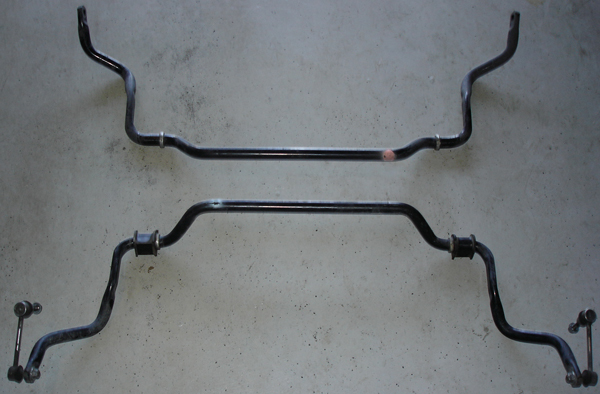

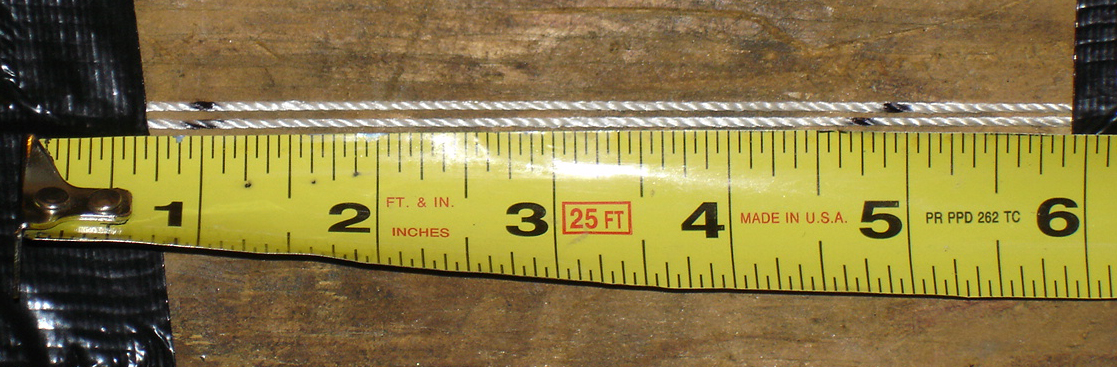

The 4-wheel drive swaybar (above) measures 3-15/16" (100mm).  The 2-wheel drive swaybar (below) measures 3-3/4" (95.2mm).  The thinner diameter 2wd bar allows the front end to flex more easily.

Front Suspension

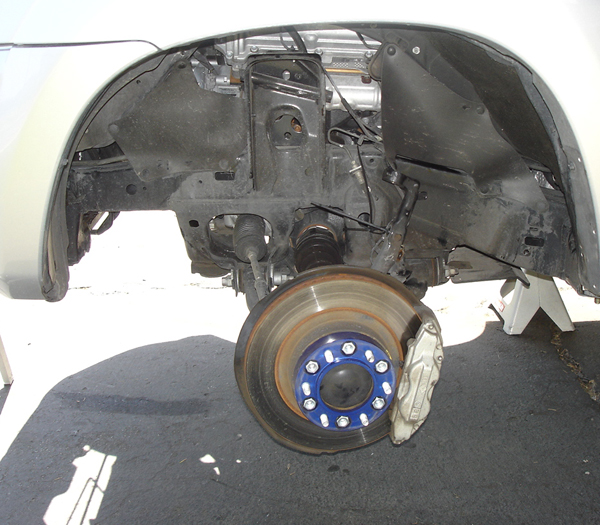

Stock Xreas removed.

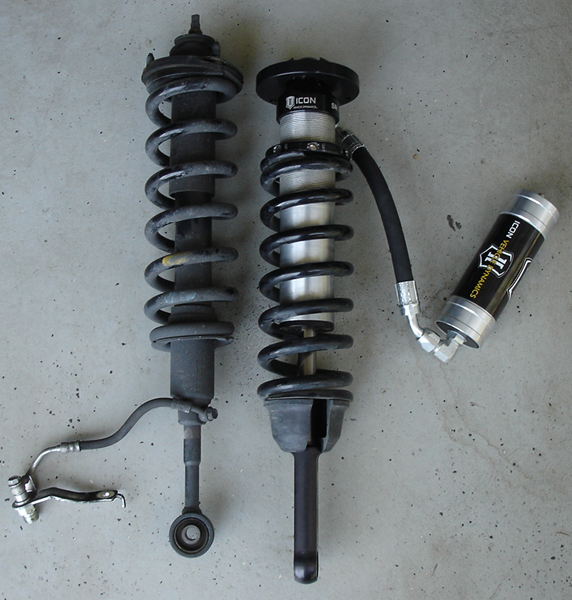

Comparison, stock vs. 2.5" Icon remote resi

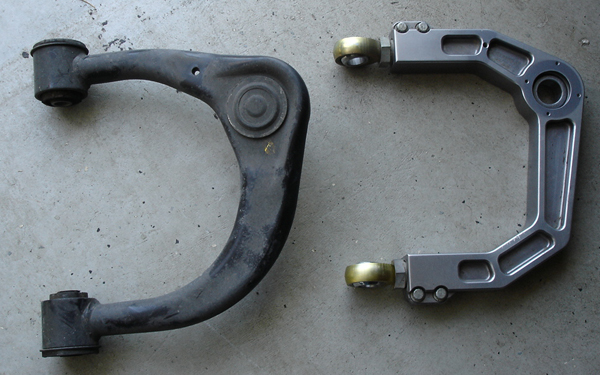

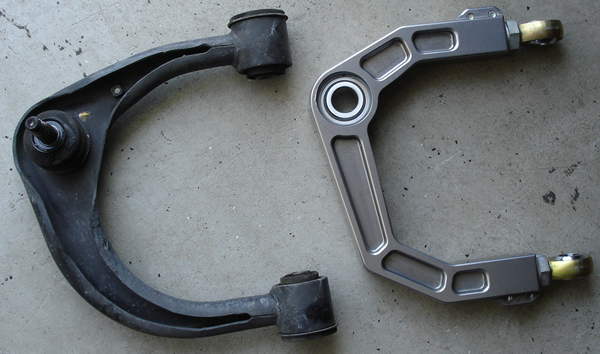

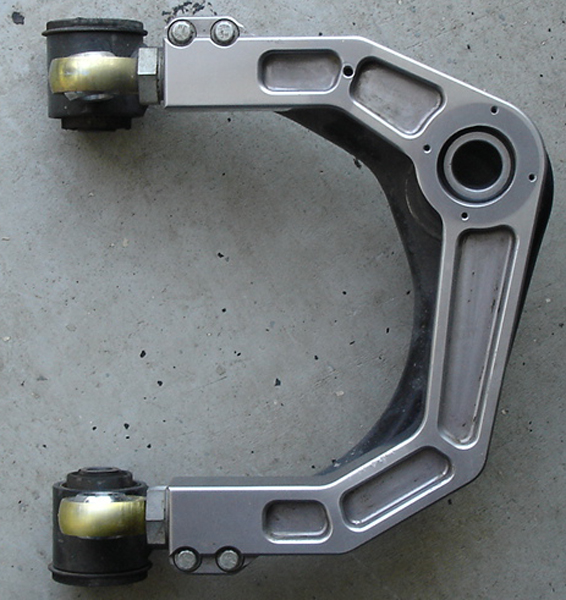

Comparison, stock vs. Icon upper control arms

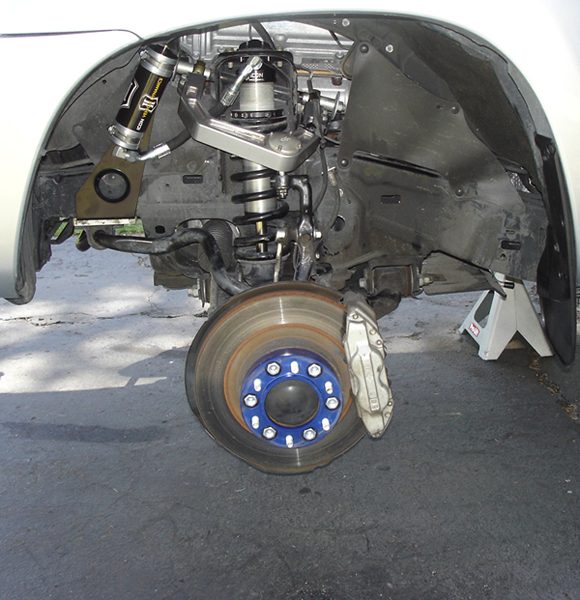

And the rebuilt Icons installed.

Rear Suspension

Stock Xreas removed

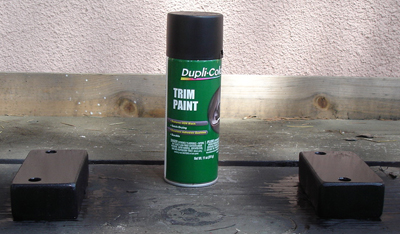

I painted the rear bump stop extenders black.  Trim paint sticks well to plastics.

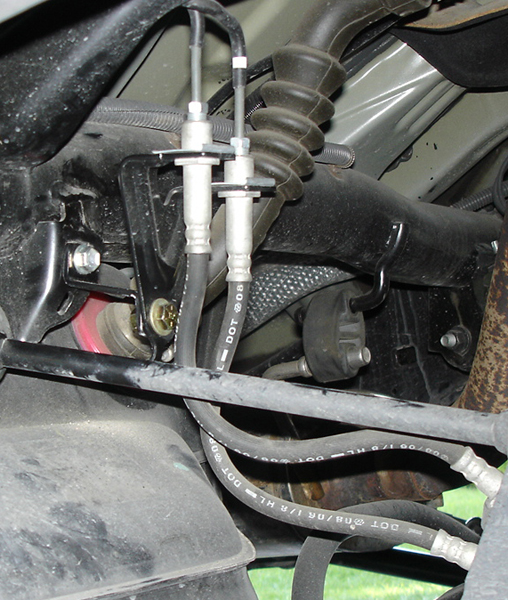

Rear brake line bracket relocator.

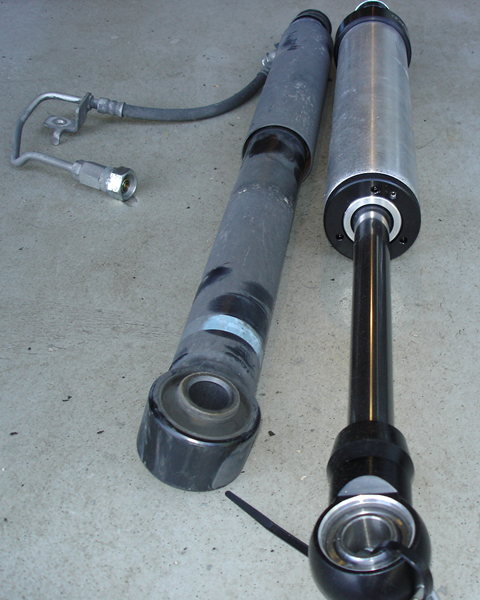

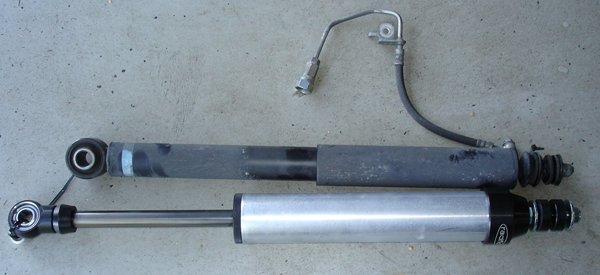

Comparison, stock vs. Overland Warehouse 2.5" Radflos

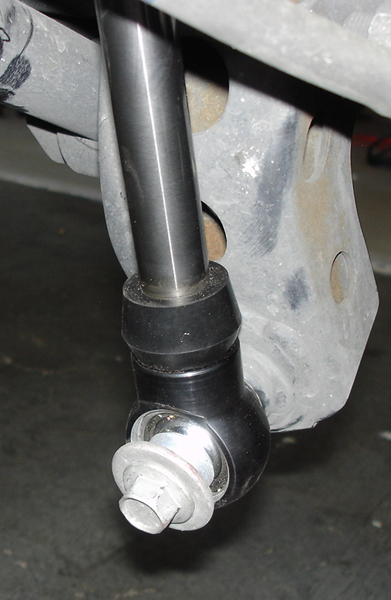

Lower bushing on the Radflos

Comparison, stock vs. Overland Warehouse rear springs

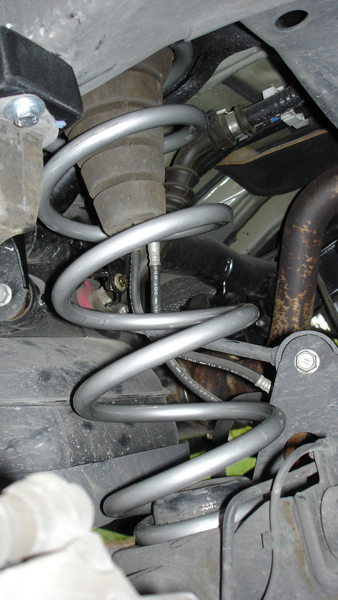

And installed.

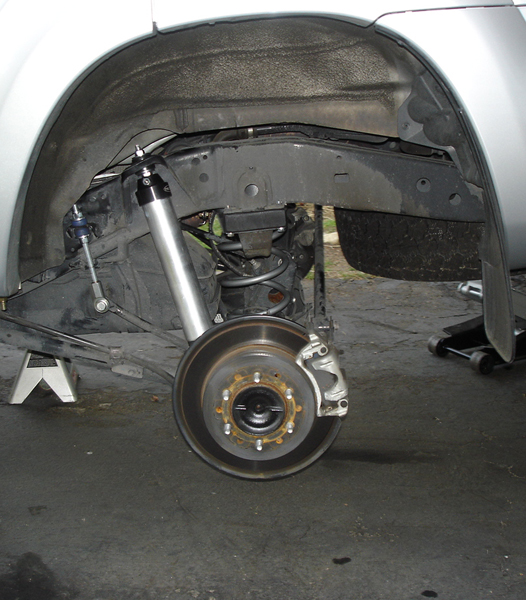

Completed rear suspension

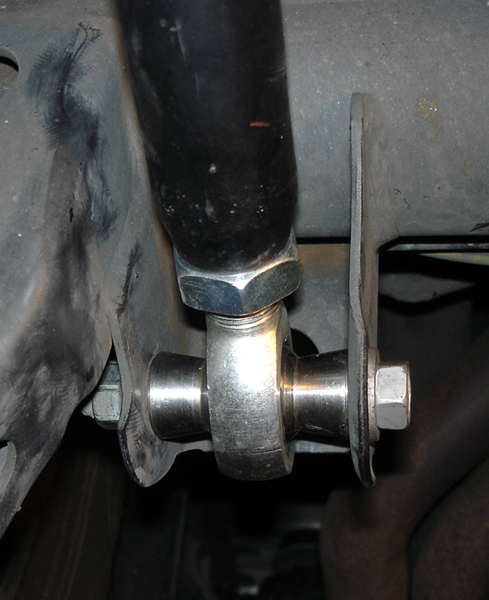

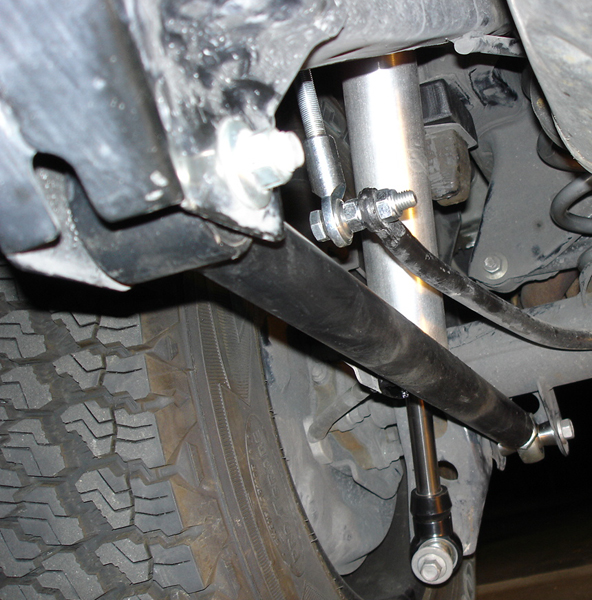

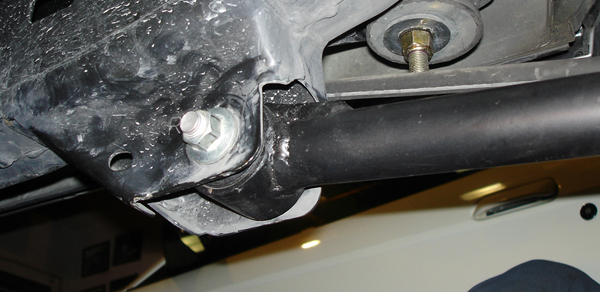

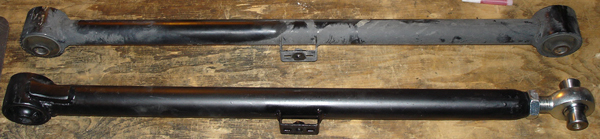

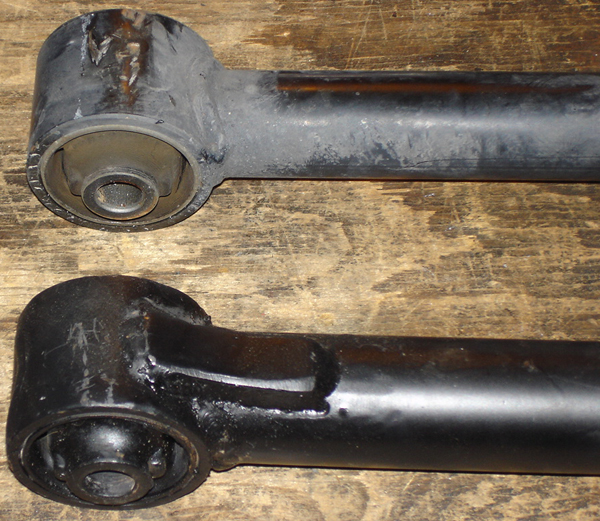

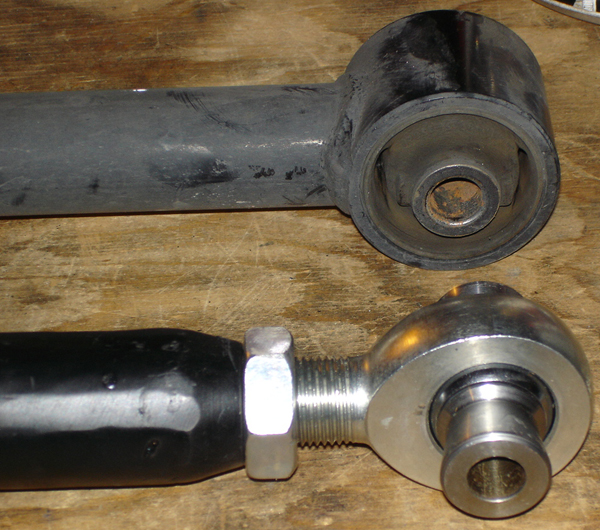

Kurtfab v2.1 lower control arms. Stock 4th gen bushing and Ballistic Fab 7/8" Chromoly (XM14) heim, 1.5OD 0.250 wall DOM.

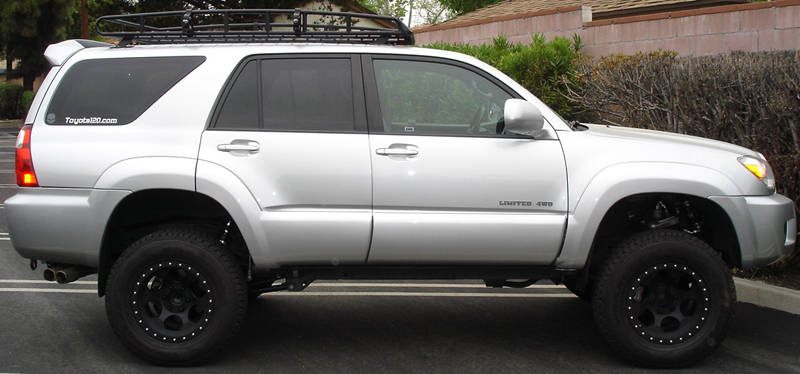

All done!
